NEW M-Series

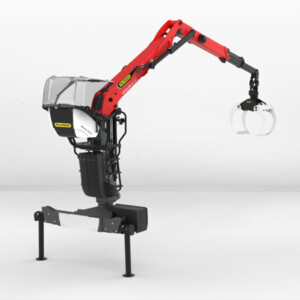

Epsilon Timber and Recycling Crane

NEW STANDARDS IN TECHNOLOGY AND DESIGN

What can we do for our customers?

At Palfinger, we pursued comfort, durability and design for the new M series, and as a result, we are now able to offer products that no one could even imagine. The master drive system, which has established new standards for design and technology, and the longest boom system in its class are the first in the industry, and were developed to improve work efficiency such as customer comfort. The new M series is a reliable machine that responds to the voices of many customers.

Downloads Technical Data

Highlights

Option 1

This all-new topseat has dramatically improved comfort and operability. Combining the sophisticated technology and experience of Palfinger Epsilon, this master drive enables smooth crane operation that no one has ever experienced, and makes it less tiring even during long hours of operation. Ergonomic seats with mechanical suspension provide unprecedented comfort.

  • Multi-function armrest
    Cockpit control is placed.
  • Joystick lever (hydraulic control method)
    Light operation feeling like power steering.
  • Twin direction suspension
  • The ergonomically shaped horizontal and vertical suspension seats from Glamor, Germany, are easy to move,
    provide a safe and stable seating position, and are equipped with seat heaters, weight adjustment and lumbar support..
  • Twin direction suspension

Cabin for new M series

The Eps Cab is equipped with petroleum heaters and seat heaters to protect the operator from the harsh cold environment and provide a comfortable working space. Reinforced plastic front and side doors also protect against dust, splashes, noise and fall accidents.

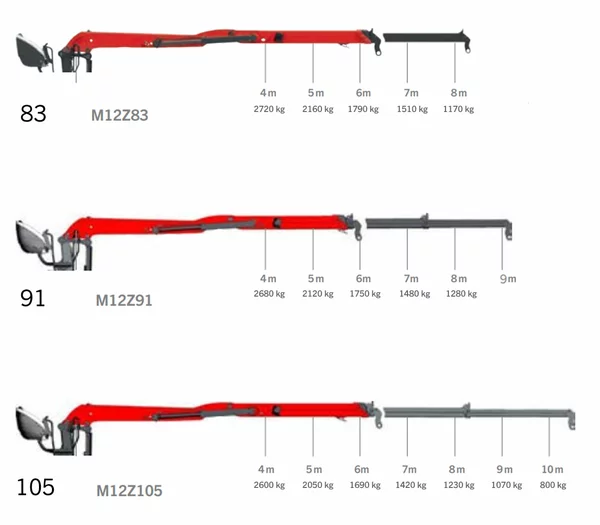

  M12Z
Boom Length 83 91 105
Crane Capacity [kNm] 109 107 104
Turning Torque [kNm] 28 28 28
Turning Angle [◦] 425 425 425
Maximum working radius [m] 8,3 9,1 10,5
Rated pressure [bar] 260 260 260
Recommended pump capacity 2K [l/min] 2x70 2x70 2x70
Recommended pump capacity 1K LS [l/min] 1x150 1x150 1x150
