FLM 25 electric

Truck Mounted Forklift

GET CENTERED

Ready to Get Centered with the new middle seat FLM? Its unique middle-seat design delivers a calm, focused experience, combining comfort and efficiency for superior material handling.

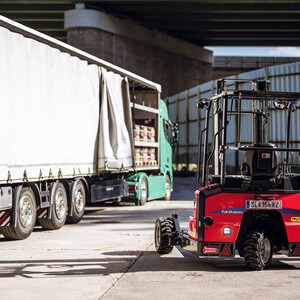

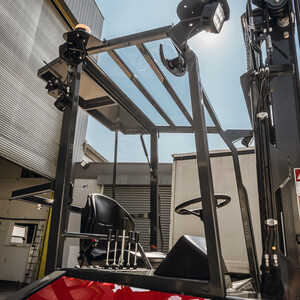

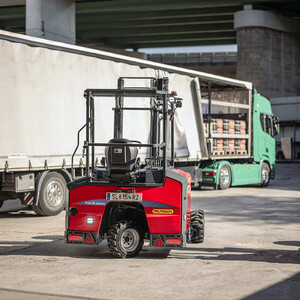

Positioned 1,440 mm high, the FLM’s comfortable middle seat offers clear visibility in all directions, even over loads up to 1,500 mm tall. Stay protected under the large 0.99m² comfort roof with ample leg space. The FLM’s compact 2,160 mm width, with a 1,800 mm rear width, ensures excellent manoeuvrability in tight spaces and enhances stability when attached to the rear of the truck.

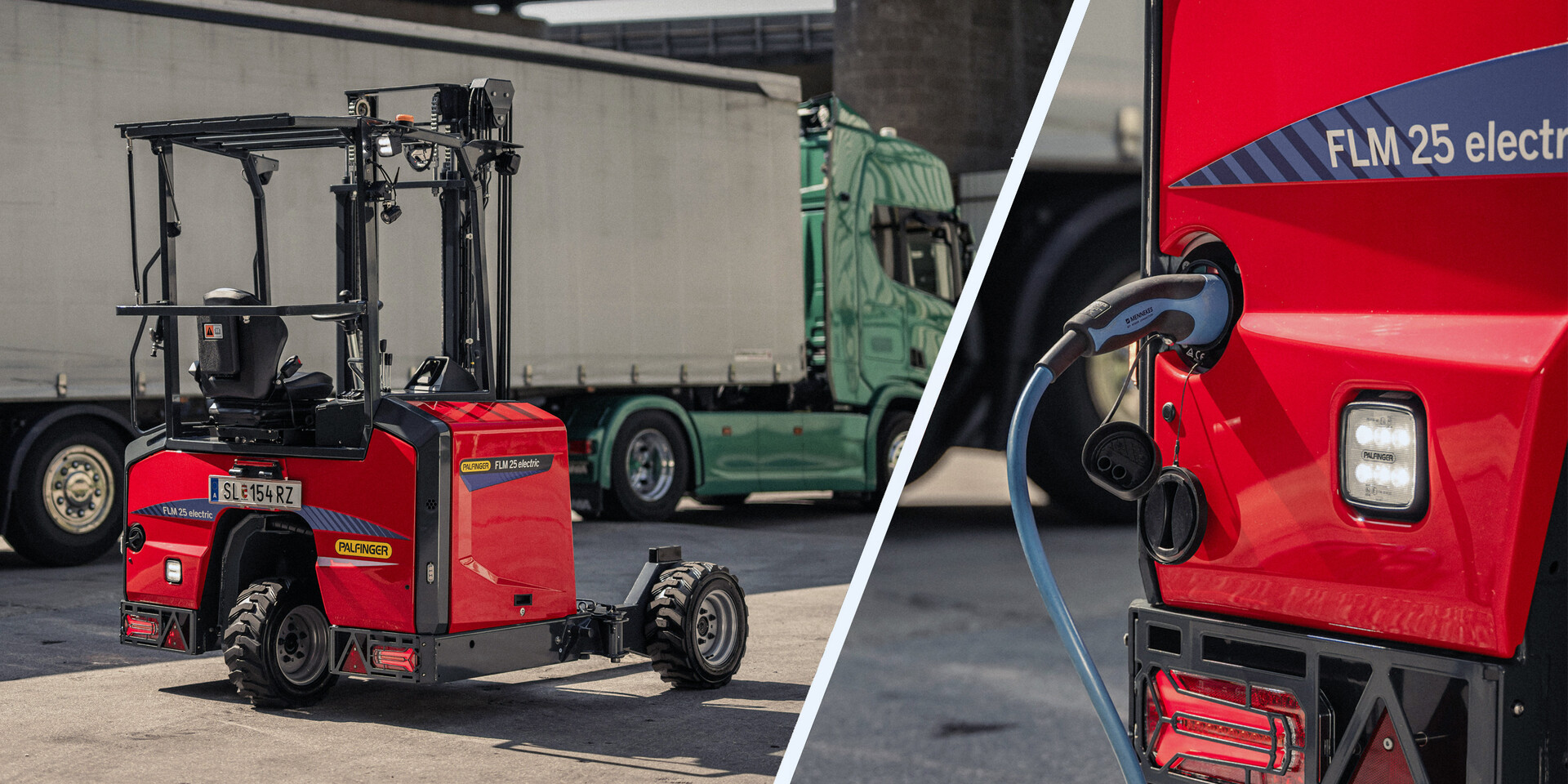

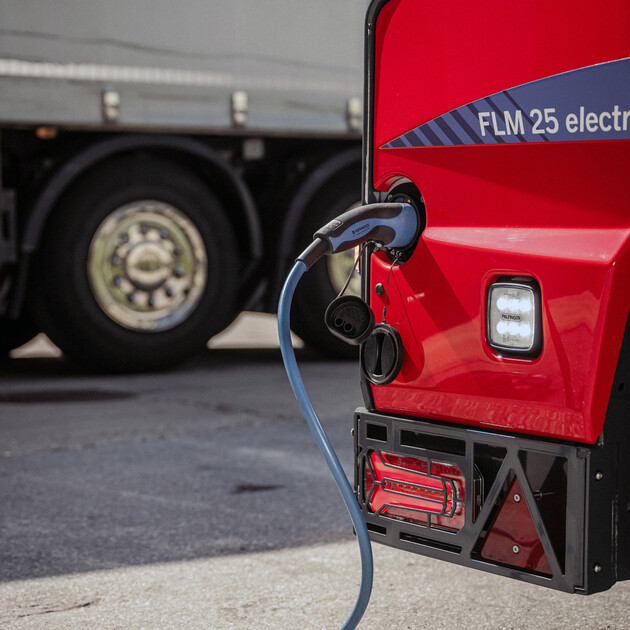

Fully electric: Depending on the customer‘s individual requirements profile, we offer the FLM as a conventionally powered version with a diesel engine or as a new fully electric version. This means that the new truck-mounted forklift series can be operated completely electrically, thus fulfilling customer requirements and meeting the demand for fully electrified solutions.

Highlights:

New middle seat model from PALFINGER's FL range
2.5 t lifting capacity with a dead weight incl. forks from 2.0 t
Maximum manoeuvrability thanks to 180° steering angle
Optimum manoeuvrability even with long goods, thanks to the 4-way system

Highlights electric version:

First fully electric truck-mounted forklift from PALFINGER
Reliable electric drive with high efficiency for reliable performance
Pioneering low dead weight for truck-mounted forklifts with fully electric drive
Available with 2 battery versions: Standard & Long Range

Maximum flexibility - as versatile as your areas of application

The new FLM truck-mounted forklifts adapt perfectly to your requirements. Choose the drive system and version that exactly matches your tasks. Thanks to the reach system and special drive concept, PALFINGER offers you the versatility that your applications require.
Maximum flexibility for maximum performance.

Drive system:	Reach system:
Diesel engine Electric drive	Telescopic forks

Version:	Drive concept:

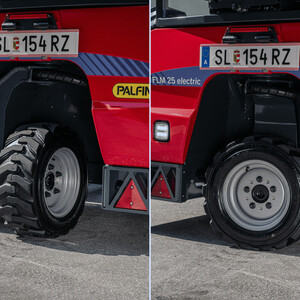

Standard 4-way	Primarily for road drive with tyres (f&r) from 18‘ & 23’ to 23’ & 23’ Primarily for terrain drive with tyres (f&r) from 23‘ & 26’to 27’ & 27’

Downloads Technical Data

Perfection in Action

Images & Videos

FLM 25 electric

Load capacity	up to 2,500 kg @ 1,550 mm
Lifting height	from 3,700 - 4,080 mm
Drive system	up to 26.3 kW
Dead weight	from 1,860 kg (without forks)
Vehicle (h x w) Overhang	from 2,620 x 2,160 mm 1,240 mm

FLM 25 4-Way electric

Load capacity	up to 2,500 kg @ 1,550 mm
Lifting height	from 3,700 - 4,080 mm
Drive system	up to 26.3 kW
Dead weight	from 2,030 kg (without forks)
Vehicle (h x w) Overhang	from 2,620 x 2,338 mm 1,240 mm

Middle-seat model from the FL range

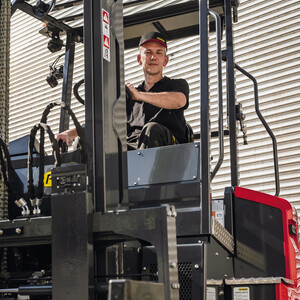

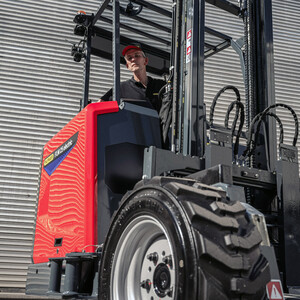

Seating height of 1,440 mm ensures a clear visibility in all directions

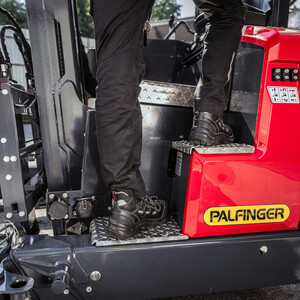

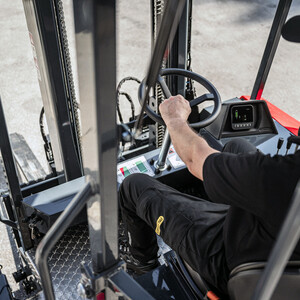

Cabin with unbeatable amount of space for the operator

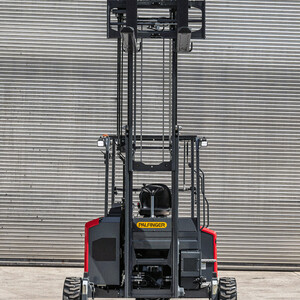

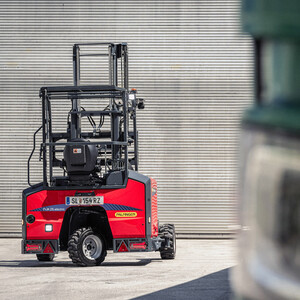

Optimised visibility thanks to new mast design

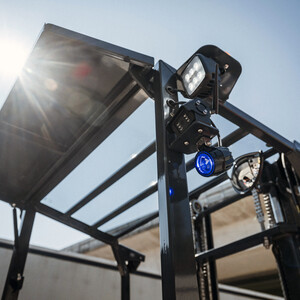

Powerful LED headlights for improved visibility and illumination to the front
LED rear lights and the rear working light, which is also certified as a reversing light

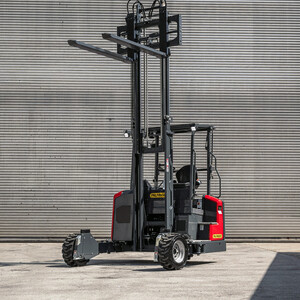

Telescopic forks for simplified unloading from the 2nd row
180° steering angle - maximum manoeuvrability for precise delivery
Powerful and economical diesel engine for economical operation
Optimally matched components and materials for lower dead weight combined with
higher stability

4-Way-Function for optimum manoeuvring of the long loads in the tightest of spaces

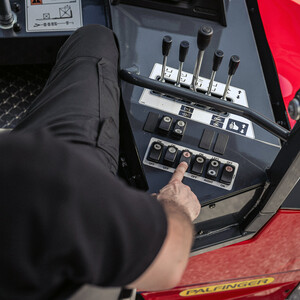

Ground control - even more convenient and safe

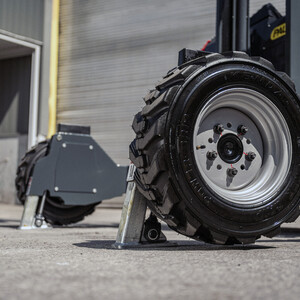

Foldable wheel arms for increased flexibility
360° all-round lighting, especially for the 4-way model
Visual warning device ‘LED Spot Blue’ if acoustic reversing beepers are not desired or permitted.
The reversing camera is connected to the truck and offers unrestricted visibility
