PALFINGER Service Cranes

Service Cranes

PALFINGER Service Cranes are built to be the lightest, longest, and strongest telescopic service cranes in the industry. State-of-the-art Electric | Hydraulic and Hydraulic models up to 14,000 lbs. capacity meet or exceed ASME and OSHA standards, and are exclusively E-Coated by PALFINGER for the best rust protection in the industry.

Pair a PALFINGER Service Crane with one of our PAL Pro Mechanics Truck Bodies for the perfect service truck crane package. PALFINGER Service Cranes become even more versatile when equipped with our Personnel Basket, allowing you to safely complete more jobs.

Explore models

Highlights

Single-weld hexagonal booms Single-weld hexagonal booms

Single-weld hexagonal booms

PALFINGER Service Cranes hexagonal booms are constructed using ultra 100 grade tensile strength steel, robotically formed and welded out of one piece for superior material performance.

Wireless proportional controls Wireless proportional controls

Wireless proportional controls

PALFINGER Service Cranes come standard with proportional controls, a wireless remote control unit with integrated E-stop button, warning horn, and manual valve activation capability.

Winch damage prevention system Winch damage prevention system

Winch damage prevention system

PALFINGER Service Cranes feature a two block damage prevention system integrated into the winch mounting platform eliminating the need for boom tip apparatus and A2B cord reel. Meets ASME B30.5.

Explore PALFINGER Service Cranes in action

PALFINGER Service Cranes deliver impressive lifting performance in mobile and stationary applications. Our complete range of service cranes are highly versatile and a reliable solution for service trucks in construction, heavy equipment, mining, railroad, oil & gas, refuse, timber, propane, utility, municipalities, and stationary mounted applications.

PALFINGER Services Cranes feature the longest reach in the industry
E-coat anti-corrosion protection
Boom tip lighting kits

Lighter. Longer. Stronger.

PALFINGER Service Cranes are as much as 30% lighter and 20% stronger than the competition. With the longest reach in the industry, you can make fewer setup adjustments on the job site and access challenging lifts with ease. Standard boom lengths are 16’, 25’, and 29’ depending on the size of the crane.

Built to last

PALFINGER Service Cranes are the industry's only E-coated telescopic cranes. Epoxy electrocoat (E-Coat) provides superior anti-corrosion protection to ensure that your service crane holds up against the toughest of job site conditions.
Work through the night

Boom tip lighting kits

Work longer and safer. Adding our new boom tip lighting kit to your fleet will not only light up your job site, but also your bottom line.
Learn more
3,200 - 6,000 LBS.

Electric | Hydraulic Service Cranes

All Electric/Hydraulic and Hydraulic Service Cranes in this lifting range are equipped with standard single function proportional control and offer the highest lifting capacity, the best weight-to-lift ratio, and the longest reach in the industry. Optional features including 90% acoustic overload warning, 3rd wrap limiting system, and boom tip lights are available to fit your application and service truck needs.

Explore models
Electric | Hydraulic Service Cranes
8,000 - 14,000 LBS.

Hydraulic Service Cranes

All Hydraulic Service Cranes in this lifting range come equipped with simultaneous multi-function proportional control as standard, superior weight-to-lift ratios, and 29’2” of lifting reach. Each model features high-speed planetary winches at 60 ft./min line speeds, incorporating a 3rd wrap limiting system to prevent cable spool off that also doubles as a cable tensioner.

Explore models
Hydraulic Service Cranes
Service crane accessory

Personnel Basket

An industry first developed and patented by PALFINGER, our collapsible Personnel Basket is an innovative and compact aerial lift solution designed for PALFINGER Service Cranes. Thanks to its low weight, the Personnel Basket requires only a 5,000 lbs. service crane and class 4 truck.

Learn more
PALFINGER Personnel Basket
Sarpy County Fleet Service Job Story

Lift loads safely and easily

“PALFINGER service cranes are fine-tuned, responsive and easy to control – it does exactly what I want it to do without any jerky movements.” – Sarpy County Fleet Service
Read job story
Discover PALFINGER crane bodies

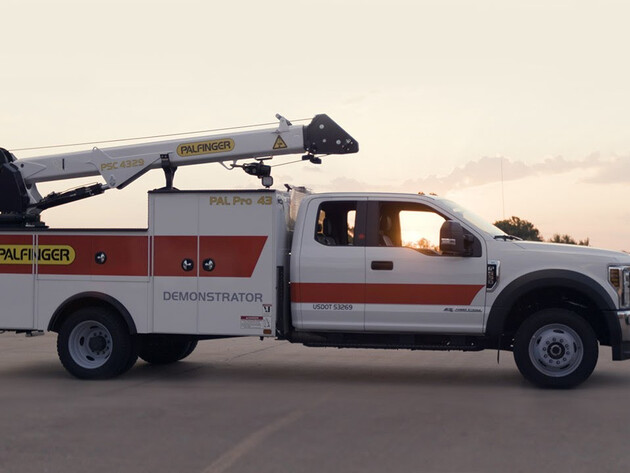

The ultimate service truck crane package

PALFINGER service trucks, equipped with PALFINGER service cranes, compressors and many available options and accessories are a reliable and efficient solution to get the job done right. Our true crane bodies are built specifically to handle the forces applied by the crane from the very start of their design and feature less weight and stronger capacities.

Learn more
PALFINGER PAL Pro Mechanics Trucks
