ARH Models

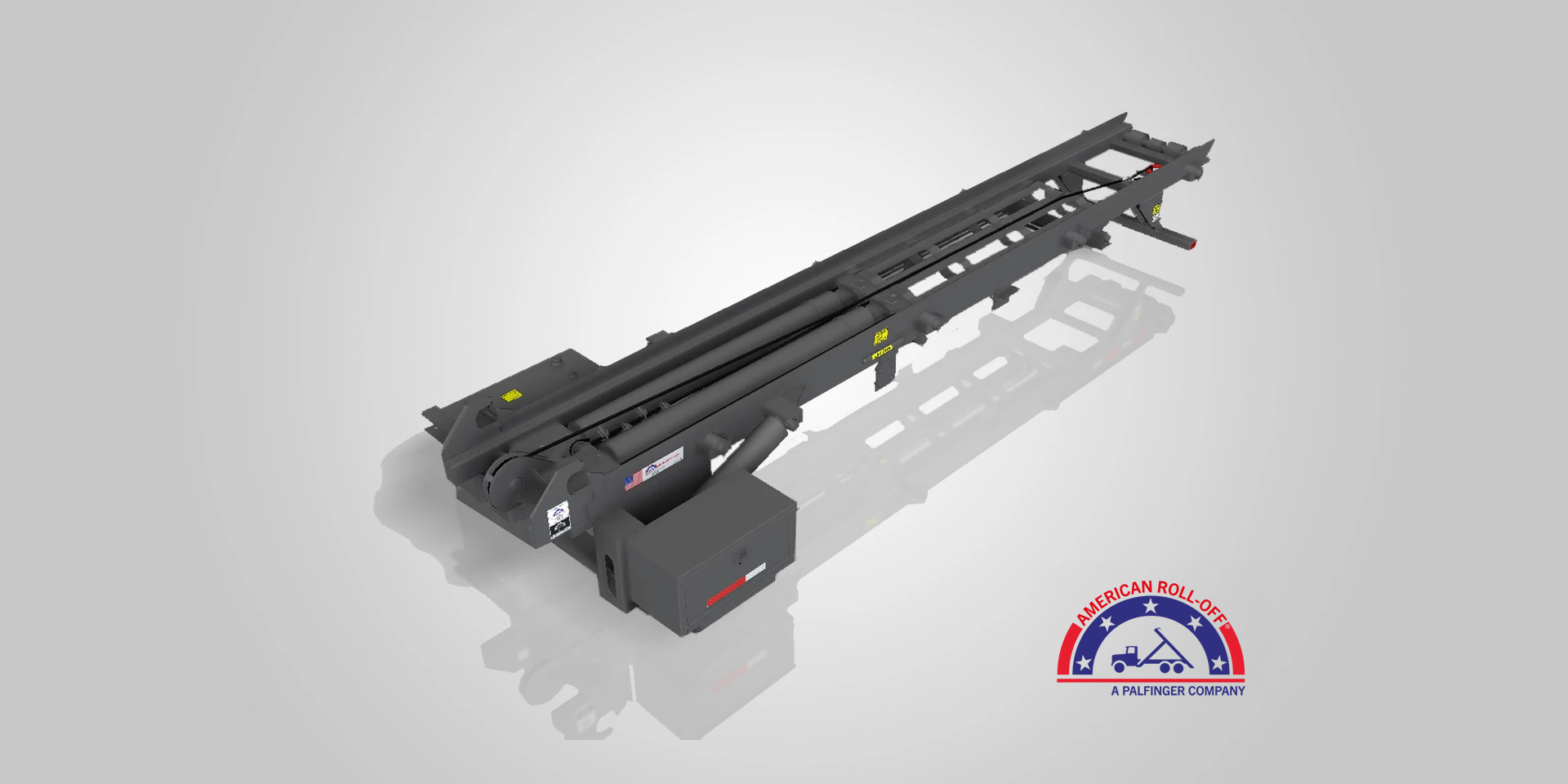

Cable Hoist
Imperial Metric
Type ARH
Max Length 24 ft
Max Capacity 75000 lbs
Technical Data

Handle the heaviest of loads with our Heavy-Duty Cable Roll-Off Hoists. Extremely versatile, all of our Heavy Duty models can handle up to 75,000 lbs. – making them the perfect fit for your heavyweight jobs in demanding industries like scrap and other heavy-duty sectors. Proudly made in Trenton, New Jersey, the American Roll-Off Cable Hoist is the choice of customers nationwide!

Downloads
Capacity (lb) Container length (ft.) Dump angle Min C/T (in.) Hoist length (in.) GVWR F/R (lb.)
75000 12-22 ft. 48 176 289 18,000/46,000
75000 12-22 ft. 48 176 289 18,000/46,000
75000 12-22 ft. 48 176 289 18,000/46,000
75000 12-24 ft. 48 194 307 18,000/46,000
75000 12-24 ft. 48 194 307 18,000/46,000
75000 12-24 ft. 48 194 307 18,000/46,000
Capacity (kg) Container length (m) Dump angle Min C/T (in) Hoist length (cm) GVWR F/R (lbs.)
34019 3.66-6.71 m 48 176 734.06 18,000/46,000
34019 3.66-6.71 m 48 176 734.06 18,000/46,000
34019 3.66-6.71 48 176 734.06 18,000/46,000
34019 3.66-7.32 m 48 194 779.78 18,000/46,000
34019 3.66-7.32 m 48 194 779.78 18,000/46,000
34019 3.66-7.32 m 48 194 779.78 18,000/46,000
  • Heavy-duty rear roller
  • Removeable sheaves and pins
  • Reeving cylinder
  • Lifting cylinder
  • Heavy-duty hinges and pivots
  • Low profile track
  • Casted lift cylinder baskets
  • Hydraulic return filter
  • Support steel ramps
  • Tail cylinder under the track
  • Dual automatic front left and right container stops and locks

Frame Options:

  • Inside/Outside Rail
  • Outside Rail only
  • Outside Rail only - Extreme Duty
