Cantilever
MBB C 1000 SPR/SPL
MBB C 1000 SPR/SPL
Tail Lift
- Lifting capacity 1,000 kg with 700 mm load distance
- Platform widths of 850 – 1,200 mm with 410 mm pitch
- Platform widths of 1,410 – 1,960 mm with 970 mm pitch
- Attached on the right or left
Further designs on request
Available Equipment
- 1,000 kg version with AluStar or AluLite platform
- KTL coating of steel components as standard
- Optionally available with powder coating (RAL colours)
- Various equipment available
Lifting capacity | 1000 kg |
Main beam | 180 x 180 mm |
Lifting gear hydraulics | 2 electrical lifting cylinder / 2 electrical tilting cylinder |
Platform overlap with floor | - 57 mm |
Lift arm pitch /Lift arm length | 410 mm |
Load centre - lengthwise | 600 mm |
Load centre - across center | Central 50% of rated load on one side |
Inclination angle of the platform | +90° to -10° |
Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
---|---|---|---|---|---|
alu | 1000 | 1450 | 317 | - | |
alu | 1000 | 1550 | 319 | - | |
alu | 1000 | 1600 | 320 | - | |
alu | 1000 | 1825 | 324 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

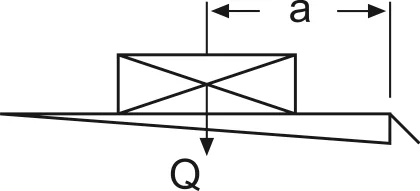

a (mm) | Q (kg) |
600 | 500 |
700 | 430 |
820 | 360 |
1120 | 260 |
Lift arms (in mm) | 900 |
H (max.) Loading height unloaded | 1554 |
H (min.) Loading height loaded | 1225 |
F (max.) Middle of main beam to upper edge of loading floor | 924 |
K (min.) at dimension F (max.) | 655 |
D (min.) Installation space (min.) | 846 |
D (max.) Installation space (max.) | 921 |
F (min.) | 860 |
K (max.) at dimension F (min.) | 730 |
G (max.) Unloaded (middle of main beam to ground) | - |
G (min.) loaded | - |
E (max.) Vehicle frame width (max.) | - |
E (min.) Vehicle frame width (min.) | - |
