PALFINGER Loader Cranes

Loader Crane Highlights

Experience the highlights of our PALFINGER loader cranes

Memory Position

Save up to 4 crane positions with the Memory Position and return to them again and again with only 2 levers.

Smart Control

With Smart Control, the operator of a TEC crane turns hard work into smart work and can control a horizontal or vertical movement of the crane tip with only one lever. The intuitive control of the tip allows a diagonal movement as well as any curve by combining both directions.

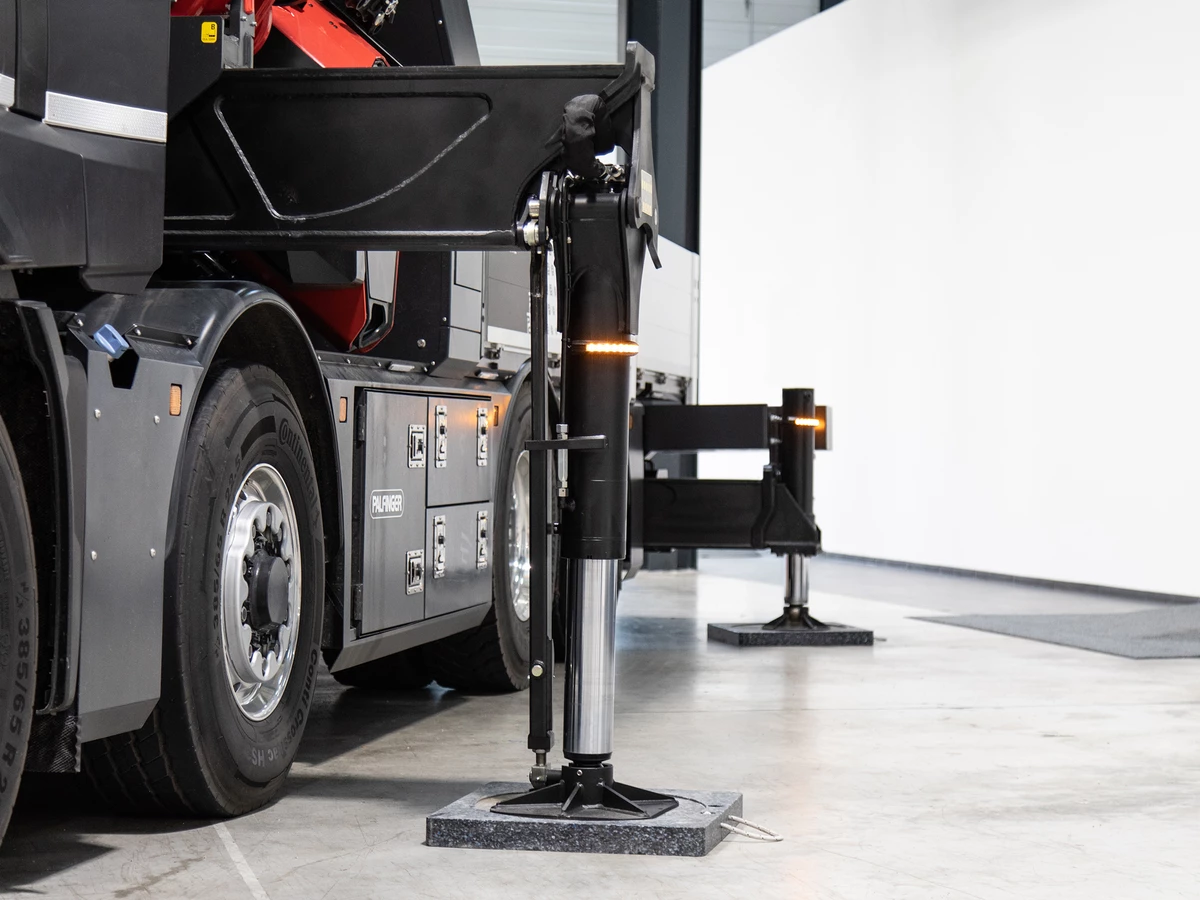

Leveling Assistant

The Leveling Assistant supports the crane operator during the stabilizing process by leveling the vehicle efficiently with just one lever movement on the PALcom P7 Radio Remote Control.

HPSC-Plus LOAD

PALFINGER has further developed the proved stability system HPSC and offers application oriented additional functions in a modular system. One of the modules of this HPSC-Plus concept is HPSC-Plus LOAD. It reacts to the loading condition of the truck and calculates on the basis of the inclination the maximum load limit suitable for the respective situation.

P-Fold

P-Fold is a PALFINGER assistance system. It makes folding and unfolding an easy job for the operator. The P-Fold system also works in combination with the innovative RTC (Rope Tension Control). Both systems perfectly support the crane’s set-up processes and thus reduce set-up times to a minimum.

HPSC

High Performance Stability Control (HPSC) is a proportional system which recalculates and defines the working range and stability of the crane. Sensors for proportional path measurement are located in the stabilizers, making the positioning fully variable.

SRC

The SRC (Synchronised Rope Control) system maintains a constant distance between the pulley head and the hook block. This advantage is particularly valuable in terms of ease of use for the operator. Moreover, the efficiency of any operation is noticeably improved.

RTC

The new RTC (Rope Tension Control) system is an automatic rope tensioning device that helps to fold and unfold the crane. This is a further innovation from PALFINGER that will significantly shorten the set-up time.

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.
