PK 580 TEC
- More intelligent operation with PALTRONIC 180 control electronics
- Extra smooth control thanks to LX-6 control valve
- Very stiff and light boom system thanks to P-Profile
- More efficient and faster due to continuous slewing system
- High user friendliness due to in-house developed radio remote control PALcom P7
- More efficiency with fly jib due to DPS-C
- Maximum utilisation of the working range thanks to extended HPSC
- More lifting power due to S-HPLS
- Practical and attractive due to Functional Design










Leveling Assistant
The Leveling Assistant supports the crane operator during the stabilizing process by leveling the vehicle efficiently with just one lever movement on the Radio Remote Control P6 or P7.
P-Fold
P-Fold is a PALFINGER assistance system. It makes folding and unfolding an easy job for the operator. The P-Fold system also works in combination with the innovative RTC (Rope Tension Control). Both systems perfectly support the crane’s set-up processes and thus reduce set-up times to a minimum.

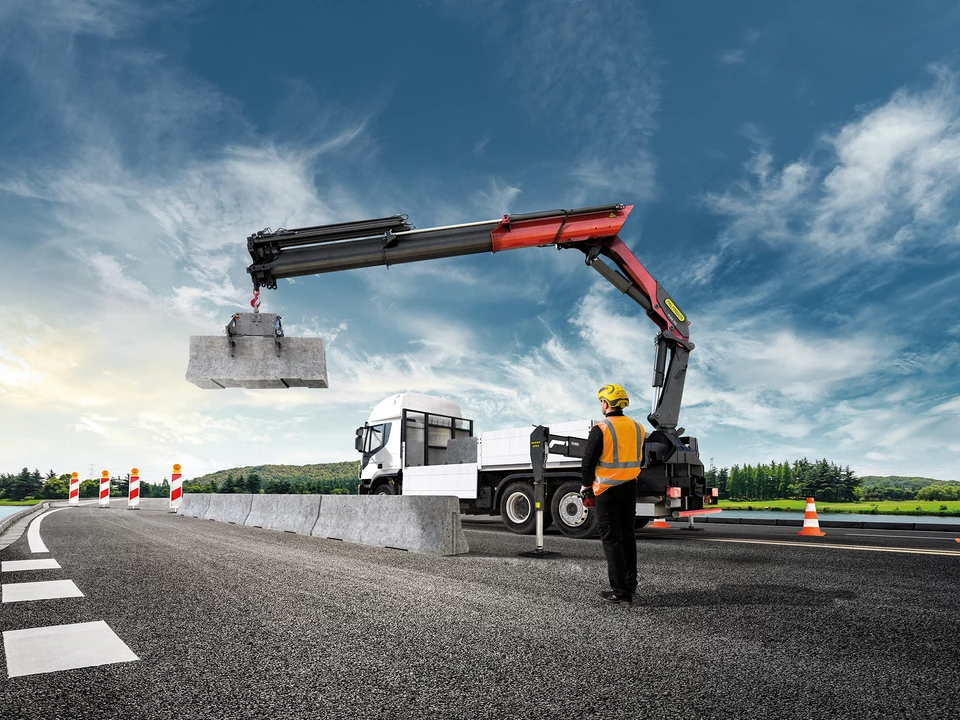

Lane Lock
Maximum Safety – The new LANE LOCK feature for your loader crane
Effectively prevent unwanted slewing into dangerous areas such as oncoming traffic or other hazardous zones with the innovative LANE LOCK assistance function. Use the menu to activate a preset lock that reliably limits your loader crane‘s slewing range. Thanks to flexible adaptation to your vehicle‘s design and easy operation, you maintain full control at all times – for enhanced safety and precision on every job site.

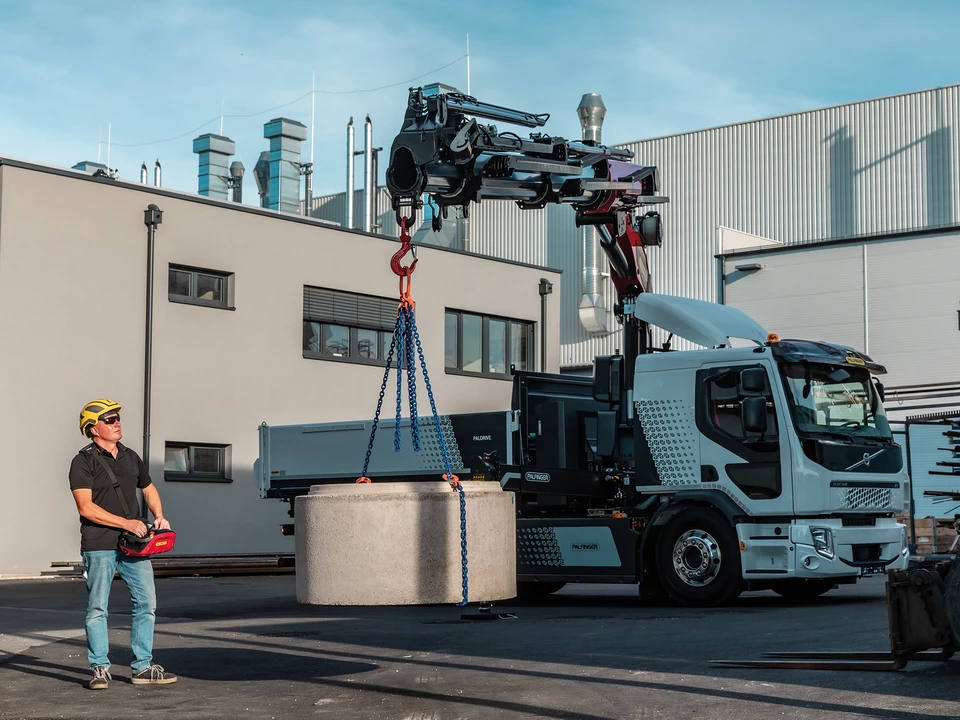

Slewing Lock
Custom locking zones – Limitation with the new SLEWING LOCK function
Maintain full control over your loader crane and specifically block unauthorized slewing areas. With the SLEWING LOCK function, you can set custom angles to safely block dangerous zones. Simply define two points via the remote control to set the restricted area – for maximum control and safety, no matter where your vehicle is positioned.
Boom Release Assist
Reliable Protection During Unfolding – The new BOOM RELEASE ASSIST function
Avoid unnecessary damage and costs caused by improper operation when unfolding the loader crane. With the BOOM RELEASE ASSIST function, your loader crane automatically ensures that the knuckle boom is always pre-tensioned before the main boom can be moved. The locking function remains active until a predefined angle value of the main arm is reached – ensuring maximum safety and smooth operation. Once activated, BOOM RELEASE ASSIST provides reliable protection during every operation.

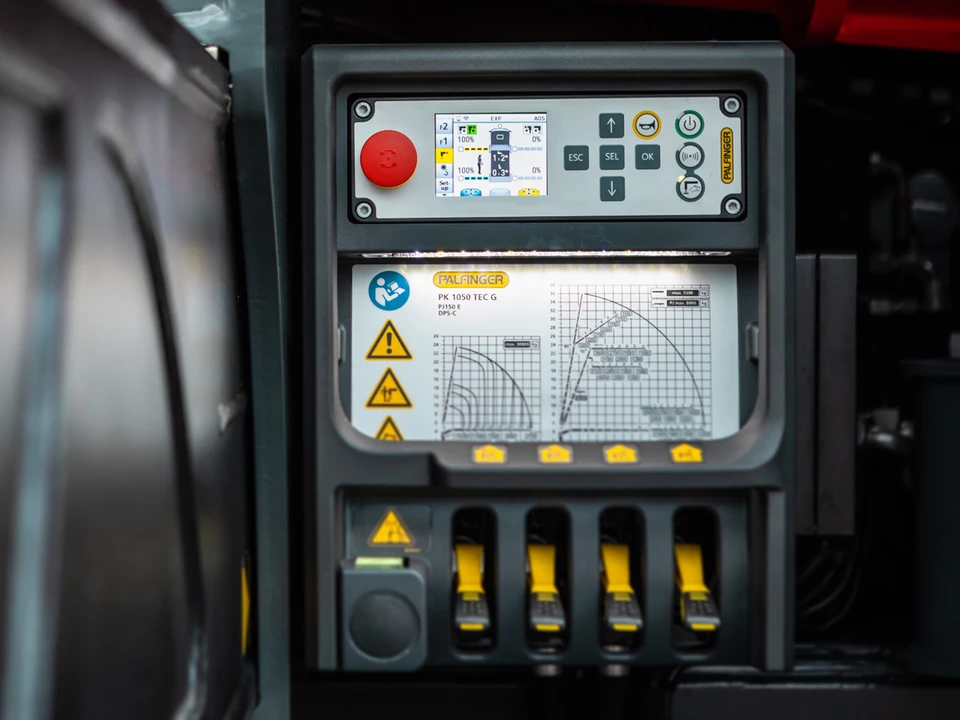

PALTRONIC 180
The PALTRONIC 180 is the most advanced control electronics for our loader cranes, enabling a safe, precise, and reliable operation. With its state-of-the-art technology, it allows for a variety of innovative assistance systems, such as Memory Position or the Leveling Assistant, and sets the standard for the new TEC generation.
CONTROL VALVE LX-6
The innovative control valve LX-6 enables particularly precise control of the new TEC-range. In combination with our specially developed PALcom P7 radio remote control, this gives the crane operator the best control over the TEC loader crane. As a result, every movement is even more precise and, above all, faster than ever before.
RTC
The new RTC (Rope Tension Control) system is an automatic rope tensioning device that helps to fold and unfold the crane. This is a further innovation from PALFINGER that will significantly shorten the set-up time.
Max. lifting moment | 55.5 mt |
Max. lifting capacity | 20000 kg |
Max. hydraulic outreach | 21.2 m |
Slewing angle | ∞ |
Slewing torque with 2 gears | 5.9 mt |
Stabilizer spread (std) | 7.8m |
Fitting space required (std) | 1.43 m |
Width folded | 2.55 m |
Max. operating pressure | 385 bar |
Pump capacity | 90 - 120 l/min |
Dead weight (std) | 4670 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
(mt) |
(m) |
(°) |
(mt) |
(MPa) |
(l/min) |
(kg) |
(mm) |
(mm) |
(mm) |
|
---|---|---|---|---|---|---|---|---|---|---|
A | 54.7 | 7.9 | ∞ | 5.9 | 38.5 | 90-120 | 4670 | 2460 | 2550 | 1440 |
B | 53.1 | 9.9 | ∞ | 5.9 | 38.5 | 90-120 | 4950 | 2460 | 2550 | 1440 |
C | 52.3 | 12.0 | ∞ | 5.9 | 38.5 | 90-120 | 5200 | 2460 | 2550 | 1440 |
D | 51.5 | 14.3 | ∞ | 5.9 | 38.5 | 90-120 | 5470 | 2460 | 2550 | 1440 |
E | 50.7 | 16.6 | ∞ | 5.9 | 38.5 | 90-120 | 5720 | 2460 | 2550 | 1525 |
F | 50.1 | 18.9 | ∞ | 5.9 | 38.5 | 90-120 | 5950 | 2460 | 2550 | 1525 |
G | 49.6 | 21.2 | ∞ | 5.9 | 38.5 | 90-120 | 6100 | 2460 | 2550 | 1525 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
