PK 65002 SH High Performance

Loader Crane
  • Maximum reliability due to PAL 150
  • More efficiency with fly jip due to DPS Plus
  • Maximum precision and safety due to optional AOS
  • Increased operating times due to low-maintenance extension system
  • Practical and attractive due to Functional Design
  • Maximum Lifting Capacity. HPSC opens up crane applications even in tight spaces.
Downloads Technical Data

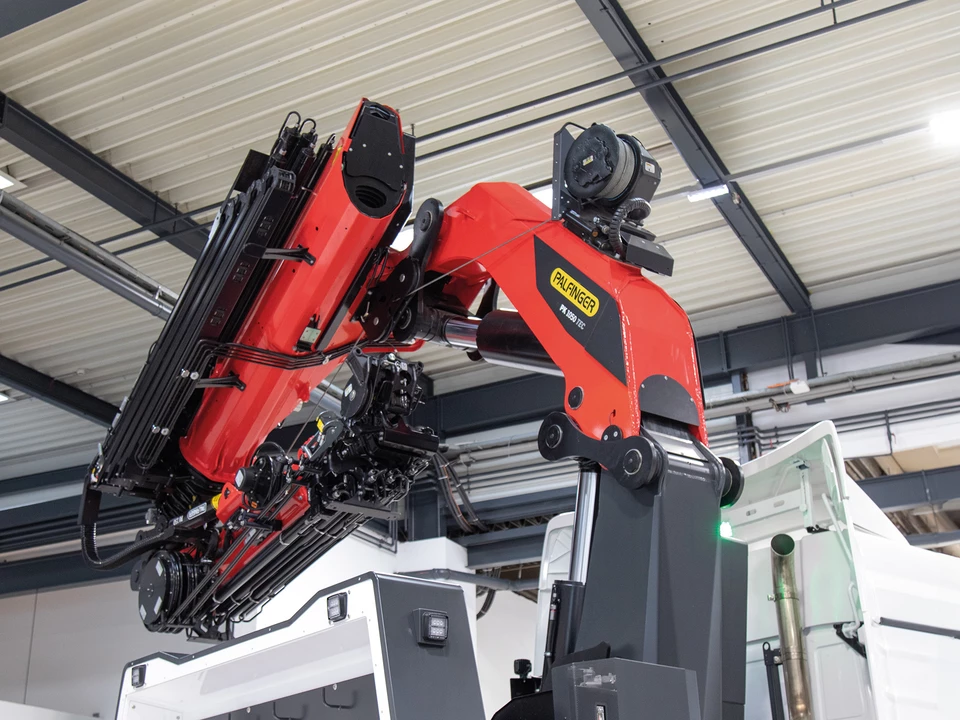

Boom Release Assist

Reliable Protection During Unfolding –  The new BOOM RELEASE ASSIST function

Avoid unnecessary damage and costs caused by improper operation when unfolding the loader crane. With the BOOM RELEASE ASSIST function, your loader crane automatically ensures that the knuckle boom is always pre-tensioned before the main boom can be moved. The locking function remains active until a predefined angle value of the main arm is reached – ensuring maximum safety and smooth operation. Once activated, BOOM RELEASE ASSIST provides reliable protection during every operation.

Send request
Max. lifting moment 62.0 mt
Max. lifting capacity 22000 kg
Max. hydraulic outreach 20.4 m
Max. manual outreach 25.1 m
Max. outreach (with fly jib) 32.6 m
Slewing angle ∞
Slewing torque with 1 gear 4.5 mt
Slewing torque with 2 gears 7.0 mt
Stabilizer spread (std) 8.6 m
Max. operating pressure 365 bar
Pump capacity 100 - 120 l/min
Dead weight (std) 5040 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting moment
(mt) 		Outreach
(m) 		Slewing angle
(°) 		Slewing torque
(mt) 		Pressure
(MPa) 		Pump capacity
(l/min) 		Crane Weight
(kg) 		Crane Height
(mm) 		Crane Width
(mm) 		Installation Width
(mm)
A 60.9 7.6 ∞ 4.5 / 7.0 36.5 100-120 5040 2450 2550 1555
B 58.8 9.5 ∞ 4.5 / 7.0 36.5 100-120 5384 2450 2550 1555
C 57.9 11.5 ∞ 4.5 / 7.0 36.5 100-120 5676 2450 2550 1555
D 57.1 13.7 ∞ 7.0 36.5 100-120 6096 2450 2550 1555
E 56.1 15.9 ∞ 7.0 36.5 100-120 6405 2450 2550 1580
F 55.5 18.1 ∞ 7.0 36.5 100-120 6631 2450 2550 1685
G 55.1 20.4 ∞ 7.0 36.5 100-120 6805 2450 2550 1685

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
